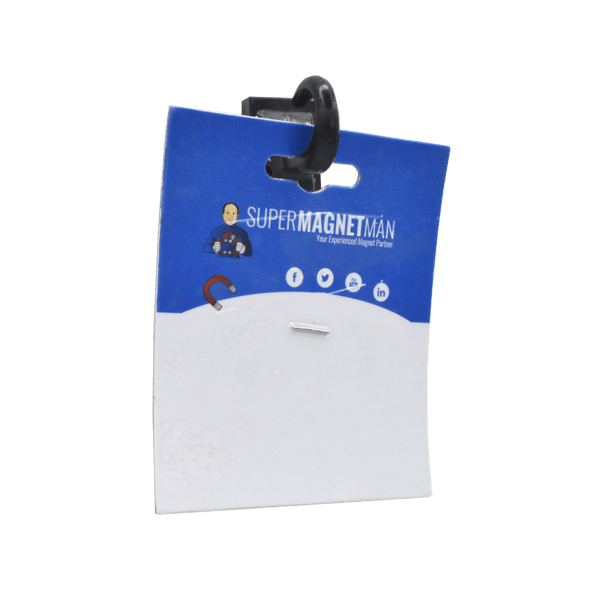

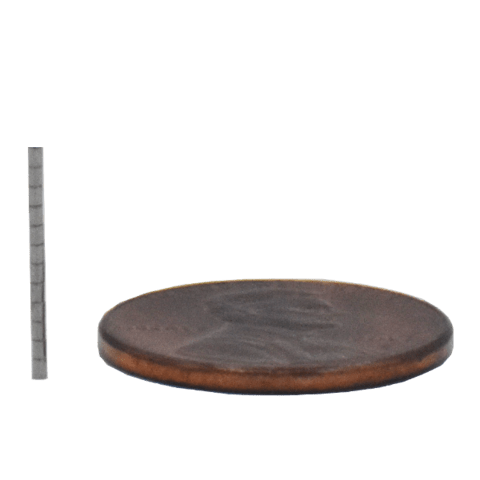

0.039" (1mm) dia x 0.039" (1mm) thick. Set of 10 pcs. N50 Rare Earth Neodymium Disc Magnet, Magnetized through the thickness. Nickel Plated.
Minimum Order Quantity (MOQ) = 3 sets
Cylinder Magnets have a longer magnetic field reach when magnetized through the length. This makes them a good option as a sensor magnet where the distance between the sensor and magnet is further. Or, for a holding application where the reach of the magnetic field will pull the magnet toward the ferrous material at a greater distance.
When magnetized through the diameter, cylinder magnets produce a magnetic field that is rounder then the field of a cylinder magnet magnetized through the length. This option is good when a larger magnetic field is required on the OD instead of the top or bottom. This can also be a great option for use as a sensor magnet or medical magnet.
SM Magnetics works with Corporate customers to optimize their design and then manufacture the specific cylinder magnet or magnetic assembly to meet the required specification. SM Magnetics has their own ISO certified factories and controls the entire manufacturing process when making individual magnets or entire magnetic sub-assemblies. For assistance from a technical representative at SM Magnetics, click here for the contact info.
D0110-10Regular price $2.50
|Max Working Temp||60°C|
|Direction of Magnetism||Through thickness|
