Parylene Coated Magnets

6 products

Showing 1 - 6 of 6 products

Parylene coated neodymium magnets are sealed with a thin, conformal polymer layer that provides outstanding moisture and chemical resistance, even in harsh environments. This coating is ideal for medical, aerospace, and chemical applications where long-term reliability is critical.

Engineers use Parylene coated magnets in high-precision devices, sensors, and assemblies requiring biocompatibility and extreme environmental protection. Our collection offers multiple shapes and grades to meet demanding requirements.

Showing 1 - 6 of 6 products

SuperMagnetMan Neodymium Cylinder Magnet. Used as medical magnets, holding magnets, sensor magnets, consumer electronics magnets. These cylinder magnets are strong rare earth neodymium magnets also used as automotive magnets.

Cyl0010-10 Parylene

$7.00

Sold out

0.030" (0.75mm) dia x 0.039" (1mm) long, Set of 10. N50 Neodymium Magnets Rare Earth Magnets, Magnetized through the length, Parylene plated. Minimum Order Quantity (MOQ) = 2 sets

Cyl0050 Parylene

$1.35

In stock, 1649 units

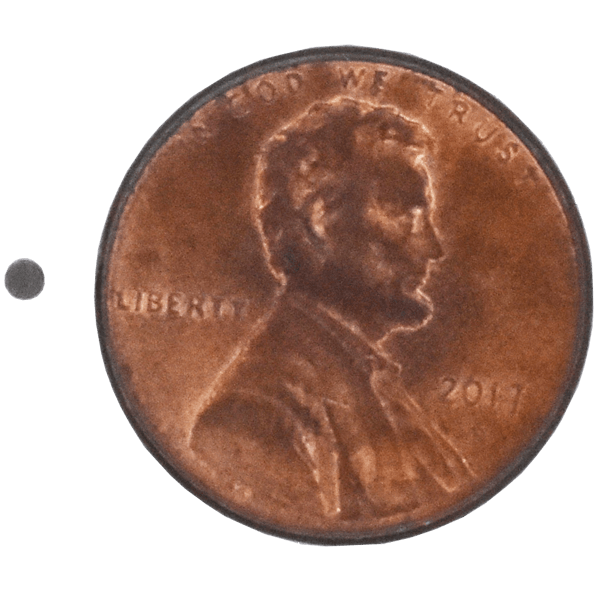

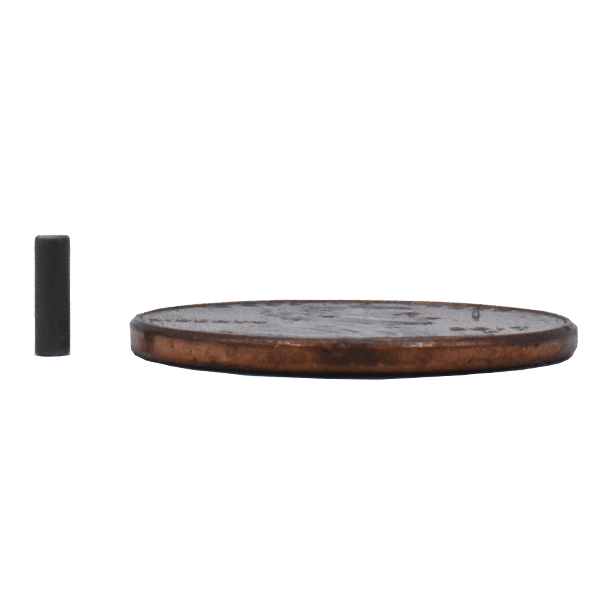

0.059" (1.50mm) dia x 0.197" (5mm) long, N50 Neodymium Magnets Rare Earth Magnets, Magnetized through the length, Parylene plated. Minimum Order Quantity (MOQ) = 20 pcs

Parylene coated magnet. SuperMagnetMan Neodymium Cylinder Magnet. Used as medical magnets, holding magnets, sensor magnets, consumer electronics magnets. These cylinder magnets are strong rare earth neodymium magnets also used as automotive magnets.

Cyl0065 Parylene

$1.50

In stock, 4343 units

0.098" (2.50mm) dia x 0.197" (5mm) long, N50 Neodymium Magnets Rare Earth Magnets, Magnetized through the length, Parylene plated. Minimum Order Quantity (MOQ) = 15 pcs

SuperMagnetMan Neodymium Disc Magnet. Used as medical magnets, holding magnets, sensor magnets, consumer electronics magnets. These small magnets are strong rare earth neodymium magnets also used as automotive magnets.

Cyl0126-Parylene

$0.48

In stock, 7231 units

0.125" (3.18mm) dia x 0.250" (6.35mm) long, N45 Neodymium Magnets Rare Earth Magnets, Magnetized through the length. Parylene plated. Minimum Order Quantity (MOQ) = 35pcs

D1005-10 Parylene

$4.50

In stock, 15 units

0.118" (3mm) dia x 0.020" (0.50mm) thick. Set of 10. N52 Rare Earth Magnets, Magnetized through the thickness. Parylene Coated. Minimum Order Quantity (MOQ) = 2 sets

D1005A-10 Parylene

$4.50

In stock, 1162 units

0.118" (3mm) dia x 0.039" (1mm) thick. Set of 10. N52 Rare Earth Magnets, Magnetized through the thickness. Parylene plated. Minimum Order Quantity (MOQ) = 2 sets

Frequently Asked Questions

What makes Parylene different from other coatings?

Parylene provides a pinhole-free, conformal coating that protects magnets in humid, chemical, or medical environments.

Can Parylene coated magnets withstand sterilization?

Yes. Parylene is highly resistant to moisture and chemicals, making it a strong choice for magnets that must go through cleaning or sterilization cycles without degrading.

What is the coating thickness of Parylene?

Typical thickness ranges from a few microns to several dozen microns depending on requirements.

Does Parylene affect magnetic strength?

The coating is extremely thin and does not meaningfully reduce magnetic performance.

Can you produce custom sizes, magnetization direction or coatings?

Yes. Through our engineering division, SM Magnetics, we can design and manufacture custom sizes, magnetization directions, and specialized coatings. You can either submit a custom request form or contact us directly to speak with our experts.
