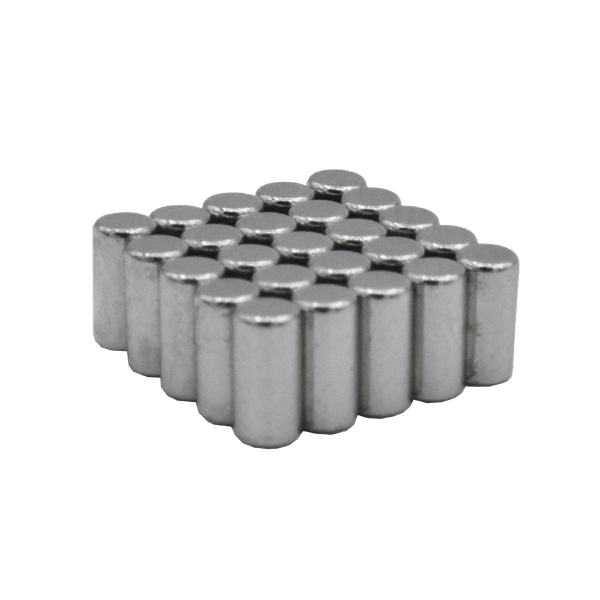

SuperMagnetMan Neodymium Cylinder Magnet.  Used as medical magnets, holding magnets, sensor magnets, consumer electronics magnets.  These cylinder magnets are strong rare earth neodymium magnets also used as automotive magnets.

0.098" (2.50mm) dia x 0.197" (5mm) long. N50 Rare Earth Neodymium Cylinder / Rod Magnet, Magnetized across the diameter. Nickel Plated.

Minimum Order Quantity (MOQ) = 20 pcs


Common Applications:  Medical devices, sensors, consumer electronics, and holding applications

About Small Cylinder Magnets:  Defined with a diameter between 0.040” (1.016mm) – 0.250” (6.35mm).  The diameter and the length will determine the reach and profile of the magnetic field and performance of the cylinder magnets.

Direction of Magnetization (DOM): Cylinder Magnets are manufactured so the DOM is set during the manufacturing process and cannot be changed. Available options during manufacturing for DOM:

  1. Through the thickness
  2. Across the diameter

Magnetic Grades:  To view a table of grades and specs, see our Neodymium Magnet Grades & Specs

About Nickel Coating on Magnets:

  • Most common coating on magnets
  • Actually 3 layers, nickel-copper-nickel
  • Protection of the magnet from corrosion in ambient air
  • Not a protective coating from humidity, water, or salt water
  • Light protection of the magnet from chipping
  • A decorative finish
  • Shiny metallic gray finish
  • Thickness: 12-25 microns
  • Cost: Low
  • Max working Temp: Approximately 200oC

View Characteristics of Magnet Coatings for more information on all our coating options.

    Custom Magnets:  Need custom Cylinder Magnets?  Use one of the below methods to contact a magnetics specialist about your application.

    Online Custom Magnet Request Form or Contact Us

    Safe Magnet Practices:  Neodymium Magnets are a valuable resource to engineers, innovators, product designers and DIY professionals.  Always practice safe handling and keep away from children at all times.

    Cyl0065D

    Regular price $0.28
    Diameter0.098" (2.50mm)
    Length0.197" (5mm)
    Max Working Temp60°C
    MOQ20
    Plating/CoatingNickel
    StrengthNeodymium 50
    Direction of Magnetism Through diameter

    In Stock: 3912
