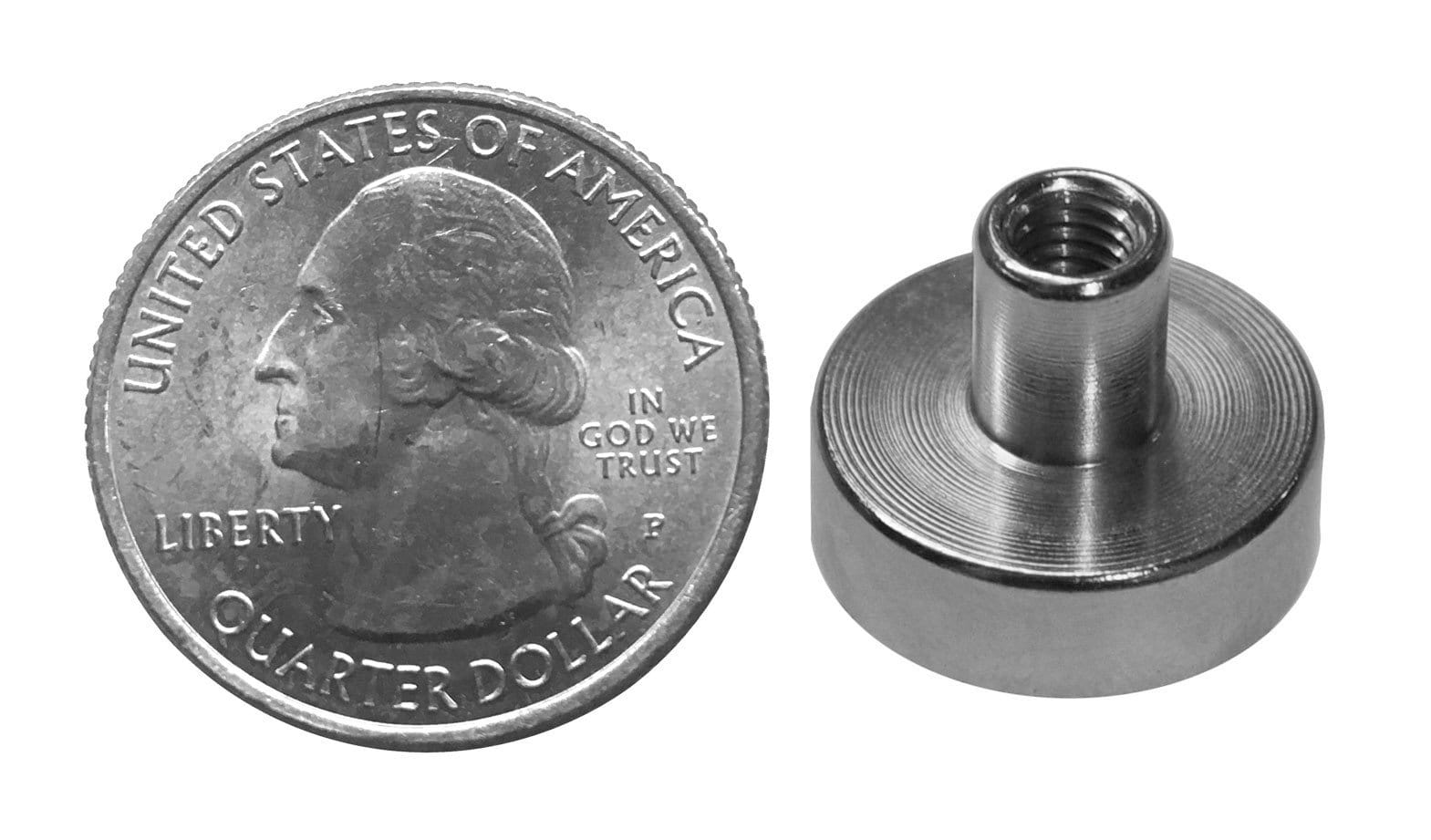

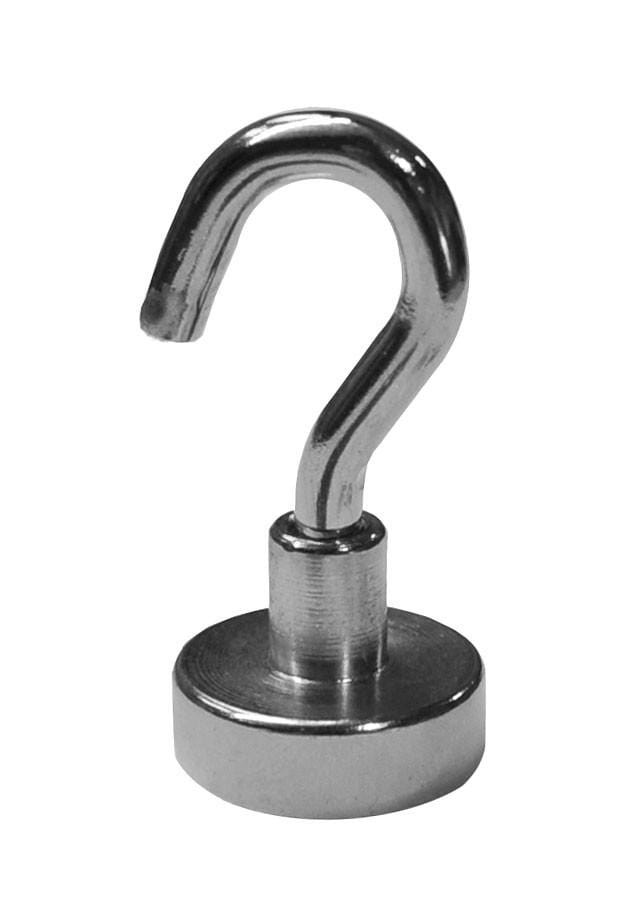

0.630" (16mm) diameter x 0.236" (6mm) post diameter x 0.512" (13mm) overall height with an M4 thread inside post. Screw-in Hook included for use as a hook magnet. All dimensions +/- 0.5 mm tolerance.
Magnet: Neodymium Disc Magnet, Grade N35, Nickel plated.
Minimum Order Quantity (MOQ) = 5 for this part.
Cap Magnets are also known as Pot Magnets and Hook Magnets. These hook magnets provide excellent holding force in a small footprint. Our inventory contains many sizes and options, but if you need a different size and holding force from a pot magnet, contact us, or use our online custom magnet quote form.
CAP_D16Regular price $0.62
|Direction of Magnetism||Through thickness|
|Inside Diameter||0.236" (6mm) Post Diameter with M4 Thread|
|Max Working Temp||80°C|
