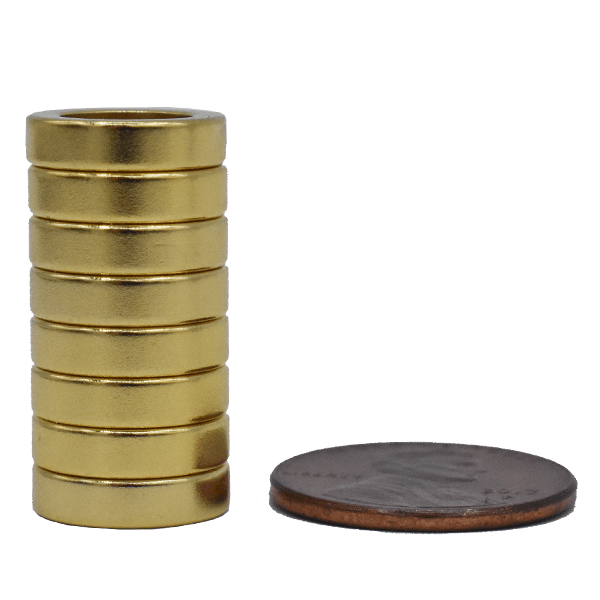

0.472" (12mm) OD x 0.315" (8mm) ID x 0.118" (3mm) thick, N40 Rare Earth Neodymium Ring Magnet, magnetized through thickness. Gold Plated.
Minimum Order Quantity (MOQ) = 10 for this part.
Neodymium Ring Magnets can be manufactured in any size, and can be magnetized through the thickness or across the diameter. We can also produce a multipole ring magnet, or a radial ring magnet. Need some assistance with your magnet requirement? Contact us, or use our online custom magnet quote form.
R1007GRegular price $0.88
|Direction of Magnetism||Through thickness|
|Inside Diameter||0.315" (8mm)|
|Max Working Temp||80°C|
|Outside Diameter||0.472" (12mm)|
|Pull Force||3.53 lb|
