SuperMagnetMan Neodymium Disc Magnet.  Used as medical magnets, holding magnets, sensor magnets, consumer electronics magnets.  These disc magnets are strong rare earth neodymium magnets also used as automotive magnets.

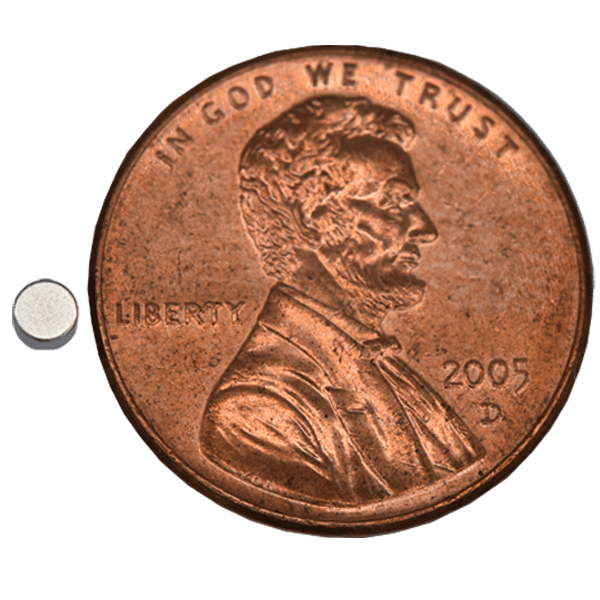

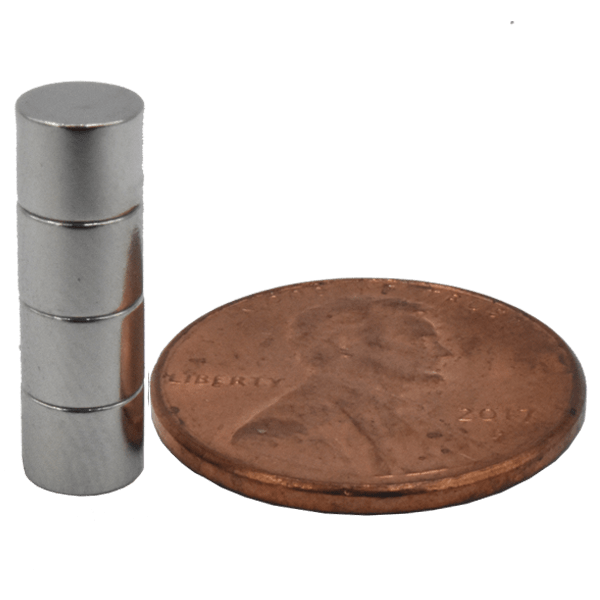

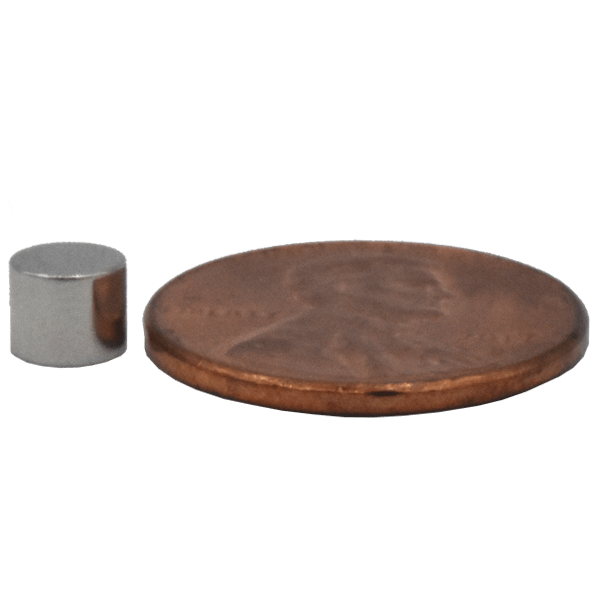

0.197" (5mm) dia x 0.157" (4mm) thick, N45 Rare Earth Neodymium Disc Magnet, Magnetized through the thickness. Nickel Plated.

Minimum Order Quantity (MOQ) = 20 pcs

Disc Magnets are mainly used in applications where a circular magnet is required to fit into a round hole or round tube.  The size of the diameter of a disc magnet influences the holding strength and magnetic field.  The larger the diameter of a disc magnet the more surface area, which increases the holding force, the pull force, and the profile of the magnetic field.

Disc Magnets can be manufactured with the Director of Magnetization through the thickness or across the diameter. Larger neodymium disc magnets can have multiple poles on the face of the disc magnet, which can significantly increase the holding strength to a ferrous surface.

SM Magnetics, the engineering and manufacturing sister company of SuperMagnetMan, has been assisting Corporate customers for many years with their custom disc magnet applications.  This includes medical magnets and assemblies, sensor magnets, speaker magnets and assemblies, and holding magnets and holding assemblies.
SM Magnetics works with Corporate customers to optimize their design and then manufacture the specific disc magnet or magnetic assembly to meet the required spec.  SM Magnetics has their own ISO certified factories and controls the entire manufacturing process when making individual magnets or entire magnetic sub-assemblies.  For assistance from a technical representative at SM Magnetics, click here for the contact info.

Or, if you need assistance from SuperMagnetMan with your neodymium disc magnet, Contact us, or use our online custom magnet quote form.

For a list of neodymium magnet materials and their characteristics, visit our Neodymium Magnet Table section.  And as always use care and caution when handling neodymium magnets, as outlined in our Magnet Safety section.


Regular price $0.39
Diameter0.197" (5mm)
Max Working Temp80°C
StrengthNeodymium 45
Thickness0.157" (4mm)
Direction of Magnetism Through thickness

In Stock: 42681
