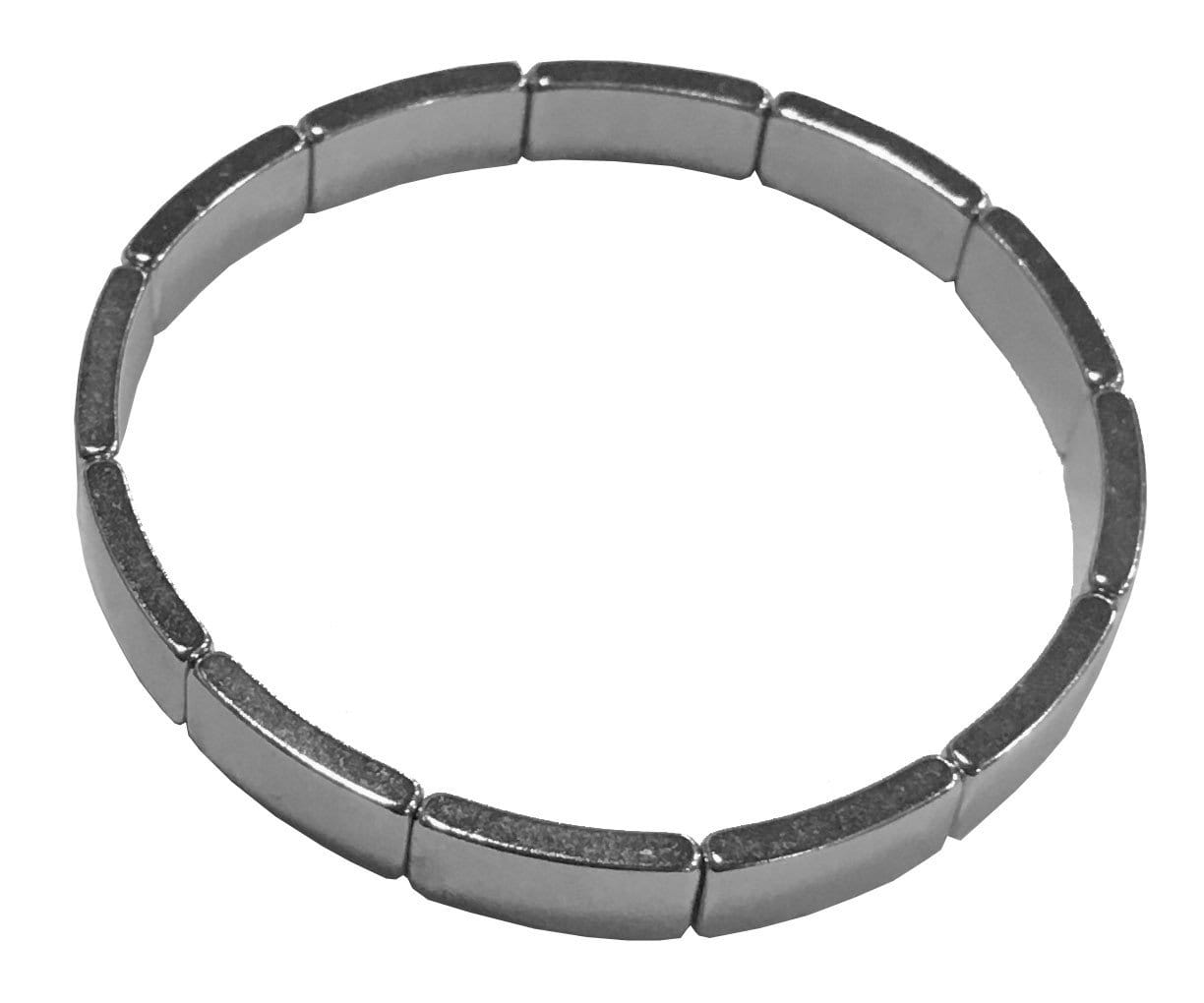

M5005 - Arc Motor Magnets - 43mm OD x 39mm ID x 5mm L - N45 - Nickel Plated

Thickness 0.197" (5mm)
Inside Diameter 1.535" (39mm)
Outside Diameter 1.693" (43mm)
Grade Neodymium 45
Max Working Temp 80°C
Coating Nickel
Direction of Magnetism Radially magnetized
MOQ 1
Quantity Per Pack 12 pieces
Price:
$15.50
Stock:
In stock (166 units), ready to be shipped

Additional Resources

Pull Force Calculator

Estimate holding power for your application.

Go to Calculator
Coating Specifications

Compare different coatings for corrosion resistance, and durability to choose the right option for your specific application.

View Coatings Now
Material Grades & Curves

Explore Neodymium & Samarium Cobalt magnet material specs and BH curves to ensure proper material selection for your specific application.

View Materials Now
Custom Solutions

SuperMagnetMan is the e-commerce brand of SM Magnetics, here to make it easy to get the magnets you need for prototyping, testing, or small-scale use. When you're ready for a custom solution—whether that’s a fully engineered magnetic system, simulation support, or a complete assembly—our team at SM Magnetics is ready to help you bring it to life.

About the Product

Neodymium arc magnets are built for rotor and stator prototypes, magnetic couplings, and curved fixtures. The arc radius nests on hubs or housings so you can assemble partial or full rings to tune pole count and air gap. Magnetization is typically axial through thickness, with radial options for motor development. Tight arc angle, ID/OD, and thickness tolerances support repeatable fits and balance. Estimate attraction with the pull-force calculator, then review grade and temperature limits in the material data and select coatings that suit your test environment.
