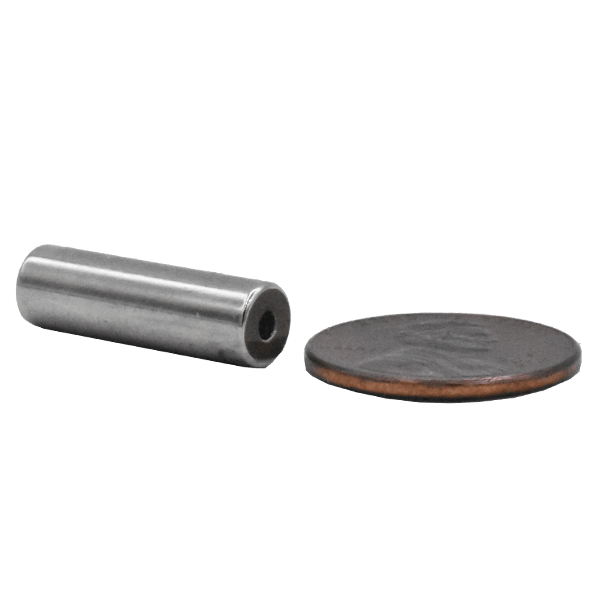

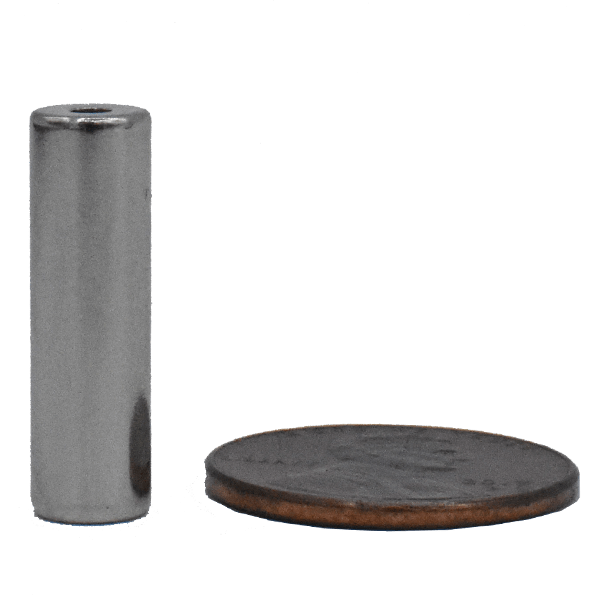

0.236" (6mm) OD x 0.079" (2mm) ID x 0.787" (20mm) long, N50 Rare Earth Neodymium Tube Magnet, Magnetized through the length. Nickel Plated.
Minimum Order Quantity (MOQ) = 5 pcs
Neodymium tube magnets are great for use as medical magnets, sensor magnets, motor magnets, and consumer electronics magnets. The long “donut hole” shape allows for the magnet to fit on a post to secure it in place.
Tube Magnets can be custom manufactured in different ways so that they can be magnetized in a specific direction. Below is an overview of the different direction of magnetization options, however, the direction of magnetization can only be set during the manufacturing process and cannot be changed once the magnet is made.
Through the Length: Tube magnets where a magnetic field travels from the ID of the ring magnet to the OD of the ring magnet, or from the bottom to the top.
Through the Diameter: Tube magnets where a magnetic field flows from the OD of the “north pole” to the OD of the “south pole”. The ID of the ring magnet will have a magnetic field that is straight and crosses uniformly across the ID.
SM Magnetics, the engineering and manufacturing sister company of SuperMagnetMan, has been assisting Corporate customers for many years with their custom tube magnet and magnetic assembly applications.
SM Magnetics works with Corporate customers to optimize their design and then manufacture the specific tube magnet or magnetic assembly to meet the required specification. SM Magnetics has their own ISO certified factories and controls the entire manufacturing process. For assistance from a technical representative at SM Magnetics, click here for the contact info.
Tube0275ARegular price $1.75
|Inside Diameter||0.079" (2mm)|
|Max Working Temp||60°C|
|Outside Diameter||0.236" (6mm)|
|Direction of Magnetism||Through length|
