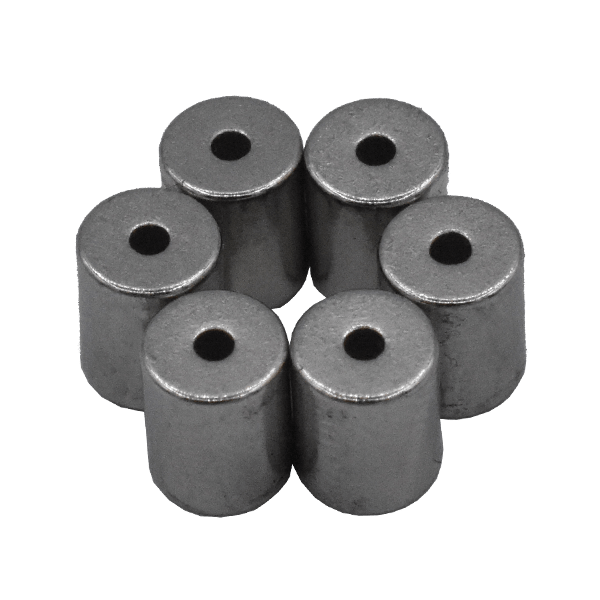

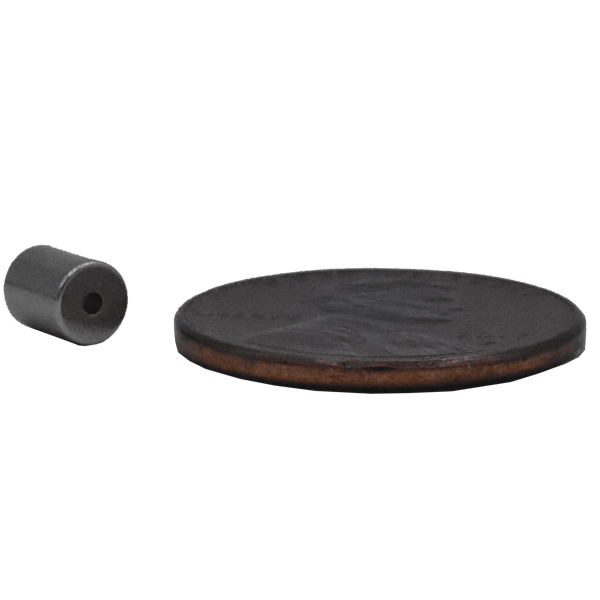

Tube0100D - Tube Magnet - 1mm ID x 5mm lg - N40 - Nickel Plated

Length 0.197" (5mm)
Inside Diameter 0.039" (1mm)
Outside Diameter 0.157" (4mm)
Grade Neodymium 40
Max Working Temp 80°C
Coating Nickel
Direction of Magnetism Across the diameter
MOQ 20
Price:
$0.75
Stock:
In stock (308 units), ready to be shipped

Additional Resources

Pull Force Calculator

Estimate holding power for your application.

Go to Calculator
Coating Specifications

Compare different coatings for corrosion resistance, and durability to choose the right option for your specific application.

View Coatings Now
Material Grades & Curves

Explore Neodymium & Samarium Cobalt magnet material specs and BH curves to ensure proper material selection for your specific application.

View Materials Now
Custom Solutions

SuperMagnetMan is the e-commerce brand of SM Magnetics, here to make it easy to get the magnets you need for prototyping, testing, or small-scale use. When you're ready for a custom solution—whether that’s a fully engineered magnetic system, simulation support, or a complete assembly—our team at SM Magnetics is ready to help you bring it to life.

About the Product

Neodymium tube magnets provide an ID/OD geometry with defined wall thickness for shafts, pass-through fasteners, and flow-through fixtures. Axial magnetization through thickness yields a clean annular field; diametrical options are available for certain sensing applications. Tight ID/OD and length tolerances support press-fits and concentric mounting with minimal runout. Use the calculator to model attraction versus steel and air gap, then size grade and coating using the material data to meet field and temperature targets.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Monirosadat Sadati
tube magnets in the research lab!

I needed a tube magnet with an ID of a maximum of 1mm. I could not find it anywhere else except here. In my research, I needed to stimulate a flow through a pipe by a strong magnetic field. So, I needed a tube magnet with an ID close to the OD of my tube as much as possible. However, it would have been perfect if I was received the map of the magnetic field in the axial and diametrical axis. Now, I have to prepare such a map by sophisticated software like COMSOL. By the way, when I started the experiment by these magnets, I was worried about the accuracy of dimensions. I measured that, and it is accurate enough! Also, I align the diametrical tube magnet along the axial axis and they are stable ( I mean they could have repel eachother because they designed to attract each other when they become arranged next to each other not on each other), which means the magnetization of N and S pole are perfectly accurate.
