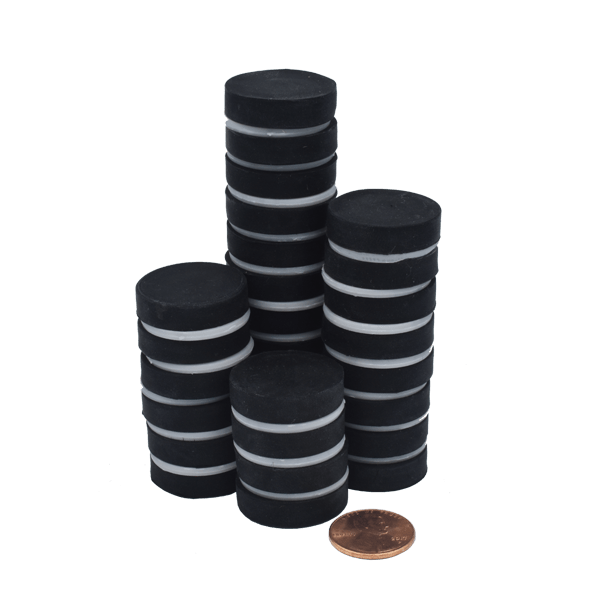

1" (25.40mm) dia x 0.250" (6.35mm) thick, Rubber Coated, N50 Rare Earth Neodymium Disc Magnet, Magnetized through the thickness.
Minimum Order Quantity (MOQ) = 1 pc
About Neodymium Magnets
Neodymium Disc magnet are the strongest permanent magnet available. Neodymium disc magnet are predominantly used in applications where a magnetic field is required in a defined area with a specific magnetic field profile.
View our Neodymium Magnet Grades & Specs
About Rubber Coating
- Requires molds and tooling
- Excellent protection to magnet against breakage, impact, and corrosion
- Provides excellent friction from sliding against steel
- Available on magnets that are medium to larger in size. Small magnets cannot be rubber coated
- Color of Rubber can vary, however black is the standard color and colors other than black may cost more
- Thickness: 0.5-1 mm
- Cost: molds & tooling are required, and cost is dependent upon complexity of each. Cost / pc will decrease quickly with large quantities
- Max working Temp: Approximately 135o C
- A mechanical hold is recommended instead of gluing rubber coated magnets to steel or plastic
View Other Coating Characteristics on our Coating Characteristics Blog
About Large Neo Disc Magnets
Our Large Neodymium Disc Magnets are defined as a neodymium magnet with a diameter > or = 1.000" (25.40mm). The diameter of a round neodymium magnet has a direct impact on the holding force, pull force, and magnetic field profile. Large round disc magnets are very strong and can be harmful if not handled carefully and cautiously.
View our Magnet Crashes Video for tips on safe handling.
Large Disc Magnets are predominately used as sensor magnets, motor magnets, medical magnets, consumer electronics magnets, and holding magnets.
Need a custom size? These small neodymium disc magnets can be manufactured with the Direction of Magnetization through the thickness or diameter.
RUB D1095Regular price $6.80
|Max Working Temp||60°C|
|Direction of Magnetism||Through thickness|
