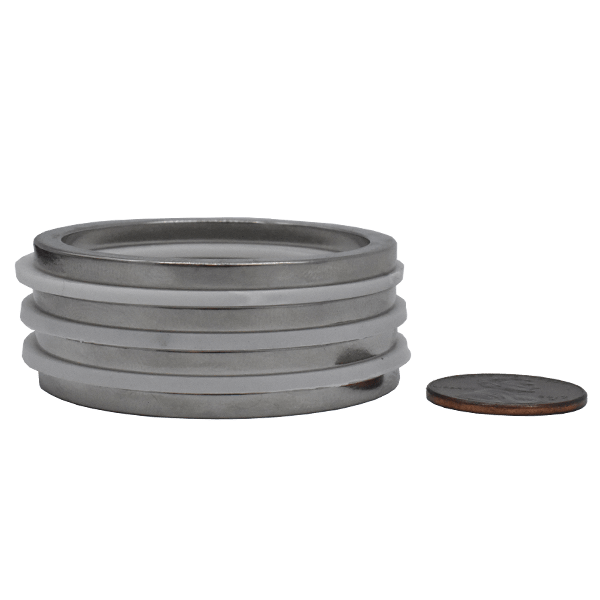

1.750" (44.45mm) OD x 1.480" (37.59mm) ID x 0.125" (3.18mm) thick, N42SH Rare Earth Neodymium Ring Magnet, magnetized through thickness. Nickel Plated.
Neodymium Ring Magnets can be manufactured in any size, and can be magnetized through the thickness or across the diameter. We can also produce a multipole ring magnet, or a radial ring magnet. Need some assistance with your magnet requirement? Contact us, or use our online custom magnet quote form.
R1177Regular price $12.00
|Direction of Magnetism||Through thickness|
|Inside Diameter||1.480" (37.59mm)|
|Max Working Temp||150°C|
|Outside Diameter||1.750" (44.45mm)|
|Pull Force||11.9 lb|
