Halbach Arrays provide a stronger, uniform and more directed magnetic field than typical magnetic assemblies.Halbach arrays are good options for electric motors, medical research, particle accelerators and any application that requires a strong directed magnetic field.

3.307" (84mm) OD x 1.575" (40mm) ID x 1.000" (12.70mm) thick. 2 pole Halbach Array. N48H Rare Earth Neodymium Halbach Array.

Minimum Order Quantity (MOQ) = 1 pc

Dimensional Breakdown

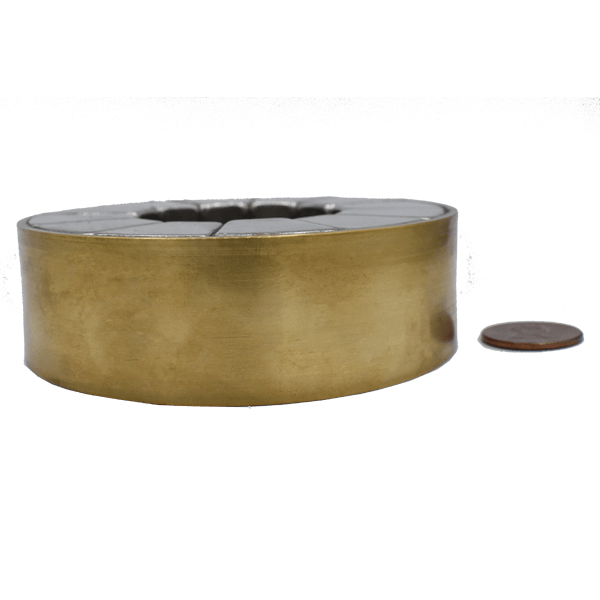

Overall Dimensions:  3.307" (84mm) OD x 1.575" (40mm) ID x 1.000" (12.70mm) thick

Magnet Specs:  Nickel plated N48H

Brass Sleeve Spec:  3.307" (84mm) OD x 3.228" (82mm) ID x 0.079" (2mm) thick, no plating.

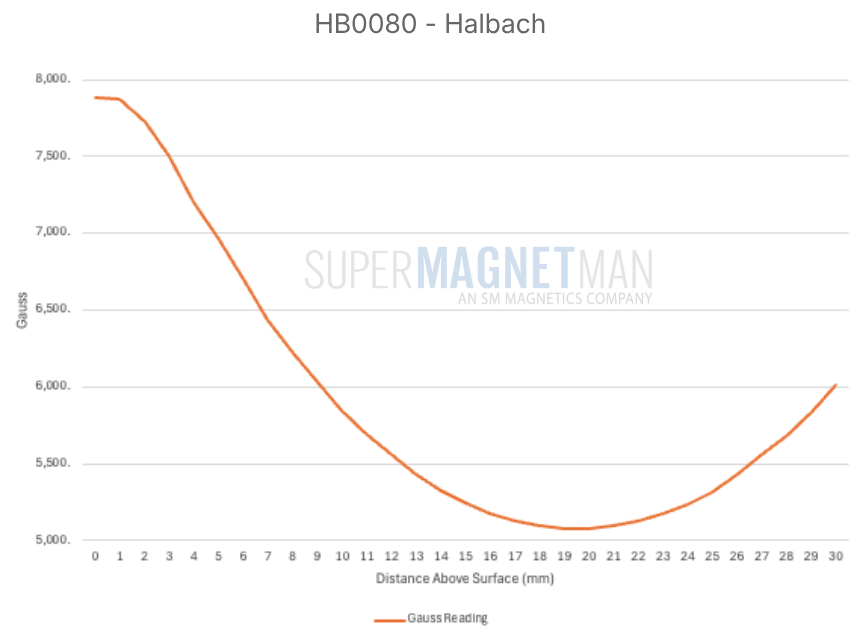

Center Point Gauss Reading: approximately 5000 - 5050 G

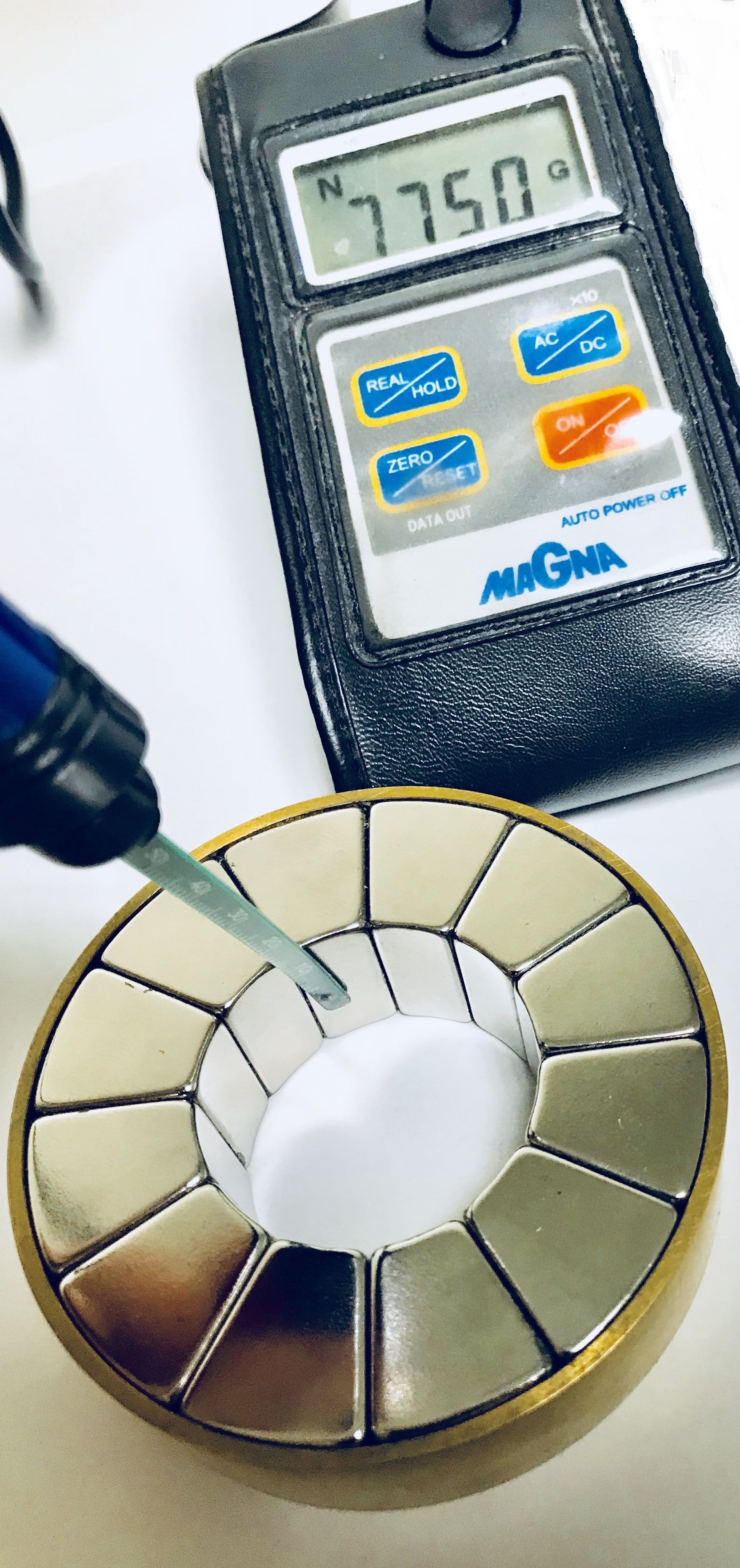

Gauss Reading at Pole: approximately 7500 - 7800 G



Halbach Arrays provide a stronger, uniform and more directed magnetic field than typical magnetic assemblies. The three (3) main Halbach Arrays are:

In a Cylindrical Halbach Array the magnetic field is contained entirely within the inside diameter of the cylinder with little to no magnetic field on the outside diameter.  The strength of the magnetic field is mainly determined by the size of the inside diameter.

In a Linear Halbach Array the magnetic field is eliminated on one side of straight array of magnets.  This array uses block magnets that are oriented in varying direction and assembled in a straight line to produce a strong magnetic field on one side while a very weak field is produced on the opposite site.

In a Holding Halbach Array an extremely strong magnetic field is produced on one side of the assembly using magnet and orientation patterns.  This can produce and hundreds of pounds of holding force.

Halbach arrays are good options for electric motors, medical research, particle accelerators and any application that requires a strong directed magnetic field.

SM Magnetics, the engineering and manufacturing sister company of SuperMagnetMan, has been assisting Corporate customers for many years with their custom Halbach Array applications.

SM Magnetics works with Corporate customers to optimize their design and then manufacture the specific cylinder magnet or magnetic assembly to meet the required specification.  SM Magnetics has their own ISO certified factories and controls the entire manufacturing process when making individual magnets or entire magnetic sub-assemblies.  For assistance from a technical representative at SM Magnetics, click here for the contact info.



Need assistance from SuperMagnetMan and its technical magnet staff with your neodymium halbach array, Contact us, or use our online custom magnet quote form





HB0080

Regular price $200.00
Inside Diameter1.575" (40mm)
Max Working Temp120°°C
MOQ1
Outside Diameter3.307" (84mm)
StrengthNeodymium 48H
Thickness1.000" (12.70mm)

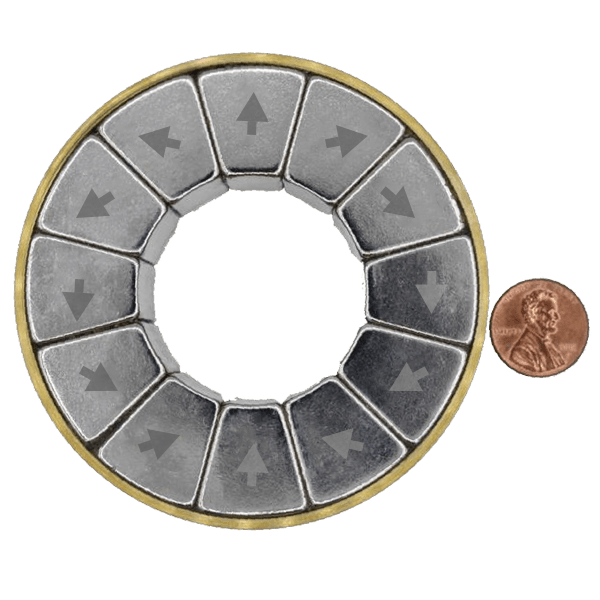

Direction of Magnetism 2 pole Halbach

In Stock: 5
