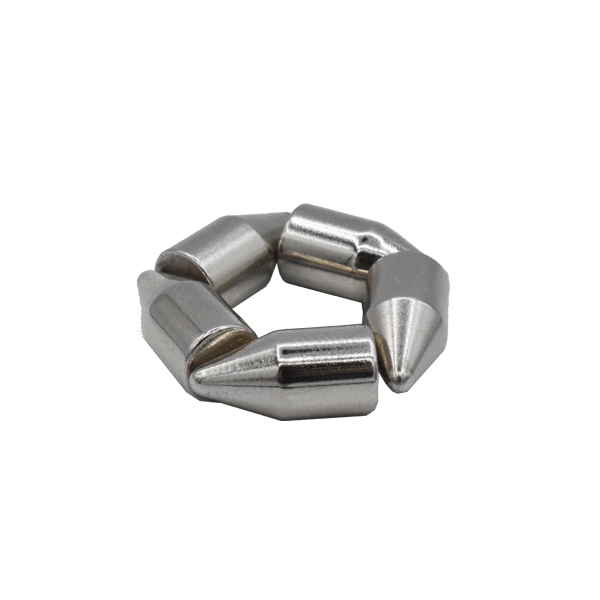

0.250" (6.35mm) dia x 0.500" (12.70mm) long. Bullet Shaped, North at tip, South at base. N50 Rare Earth Neodymium Cylinder / Rod Magnet, Magnetized through the length. Nickel plated.
Minimum Order Quantity (MOQ) = 3 pcs
Neodymium Cylinder Bullet Magnets have a more concentrated magnetic field when magnetized through the length. This makes them a good option as a sensor magnet where the magnetic field needs more focus in a specific area, or in an application where a very targeted field is required.
Neodymium cylinder bullet magnets are great for uses, which include use as medical magnets, sensor magnets, consumer electronics magnets, and automotive magnets. The can also be used as a medical R&D magnet where a magnetic field in a small area needs to be exact.
SM Magnetics, the engineering and manufacturing sister company of SuperMagnetMan, has been assisting Corporate customers for many years with their custom cylinder magnet applications. This includes medical magnets, sensor magnets, speaker magnets and magnetic assemblies.
SM Magnetics works with Corporate customers to optimize their design and then manufacture the specific cylinder magnet or magnetic assembly to meet the required specification. SM Magnetics has their own ISO certified factories and controls the entire manufacturing process when making individual magnets or entire magnetic sub-assemblies. For assistance from a technical representative at SM Magnetics, click here for the contact info.
Cyl0502NRegular price $2.50
|Max Working Temp||60°C|
|Direction of Magnetism||Through length|
