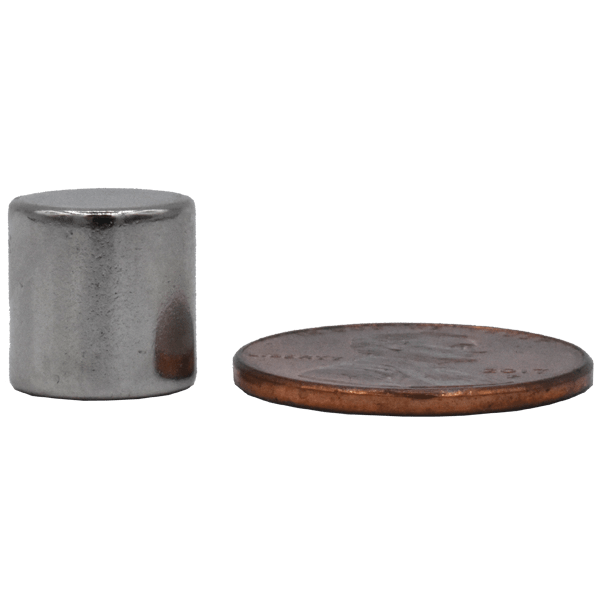

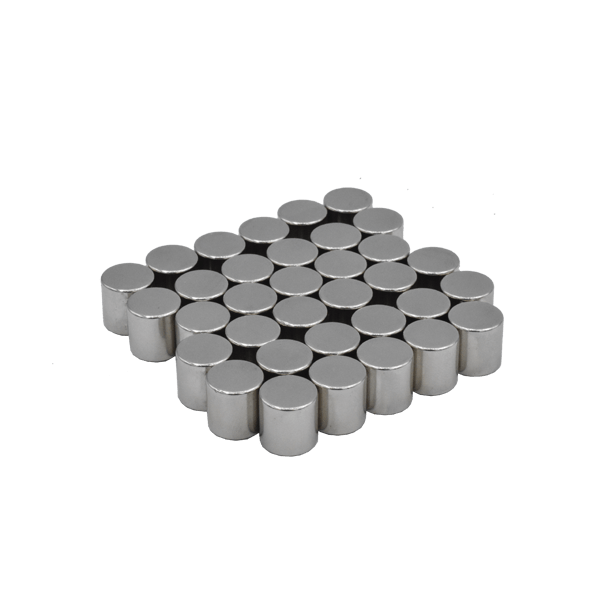

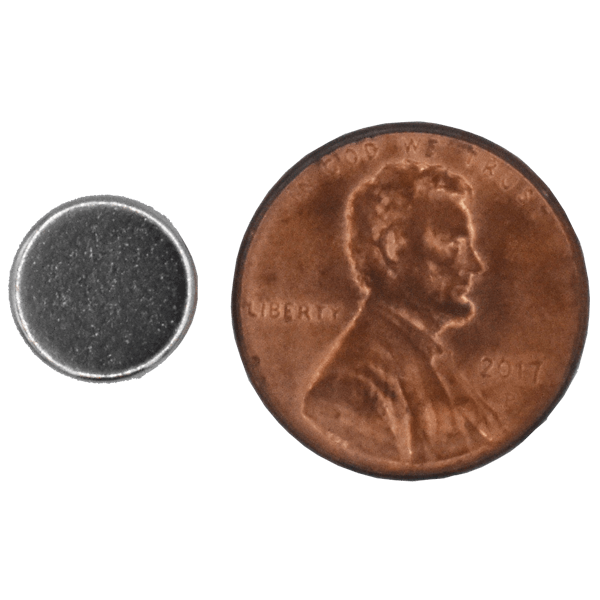

0.394" (10mm) dia x 0.394" (10mm) long, N50 Rare Earth Neodymium Cylinder / Rod Magnet, Magnetized across the diameter. Nickel Plated.
Minimum Order Quantity (MOQ) = 2 pcs
Common Applications: Medical devices, sensors, consumer electronics, and holding applications
About Mid-Sized Cylinder Magnets: Defined with a diameter between 0.251” (6.375mm) – 0.999” (25.375mm). The diameter and the length will determine the reach and profile of the magnetic field and performance of the cylinder magnets.
Direction of Magnetization (DOM): Cylinder Magnets are manufactured so the DOM is set during the manufacturing process and cannot be changed. Available options during manufacturing for DOM:
- Through the thickness
- Across the diameter
Magnetic Grades: To view a table of grades and specs, see our Neodymium Magnet Grades & Specs
About Nickel Coating on Magnets:
- Most common coating on magnets
- Actually 3 layers, nickel-copper-nickel
- Protection of the magnet from corrosion in ambient air
- Not a protective coating from humidity, water, or salt water
- Light protection of the magnet from chipping
- A decorative finish
- Shiny metallic gray finish
- Thickness: 12-25 microns
- Cost: Low
- Max working Temp: Approximately 200oC
View Characteristics of Magnet Coatings for more information on all our coating options.
Custom Magnets: Need custom Cylinder Magnets? Use one of the below methods to contact a magnetics specialist about your application.
Safe Magnet Practices: Neodymium Magnets are a valuable resource to engineers, innovators, product designers and DIY professionals. Always practice safe handling and keep away from children at all times.
|Max Working Temp||60°C|
|Direction of Magnetism||Through diameter|
