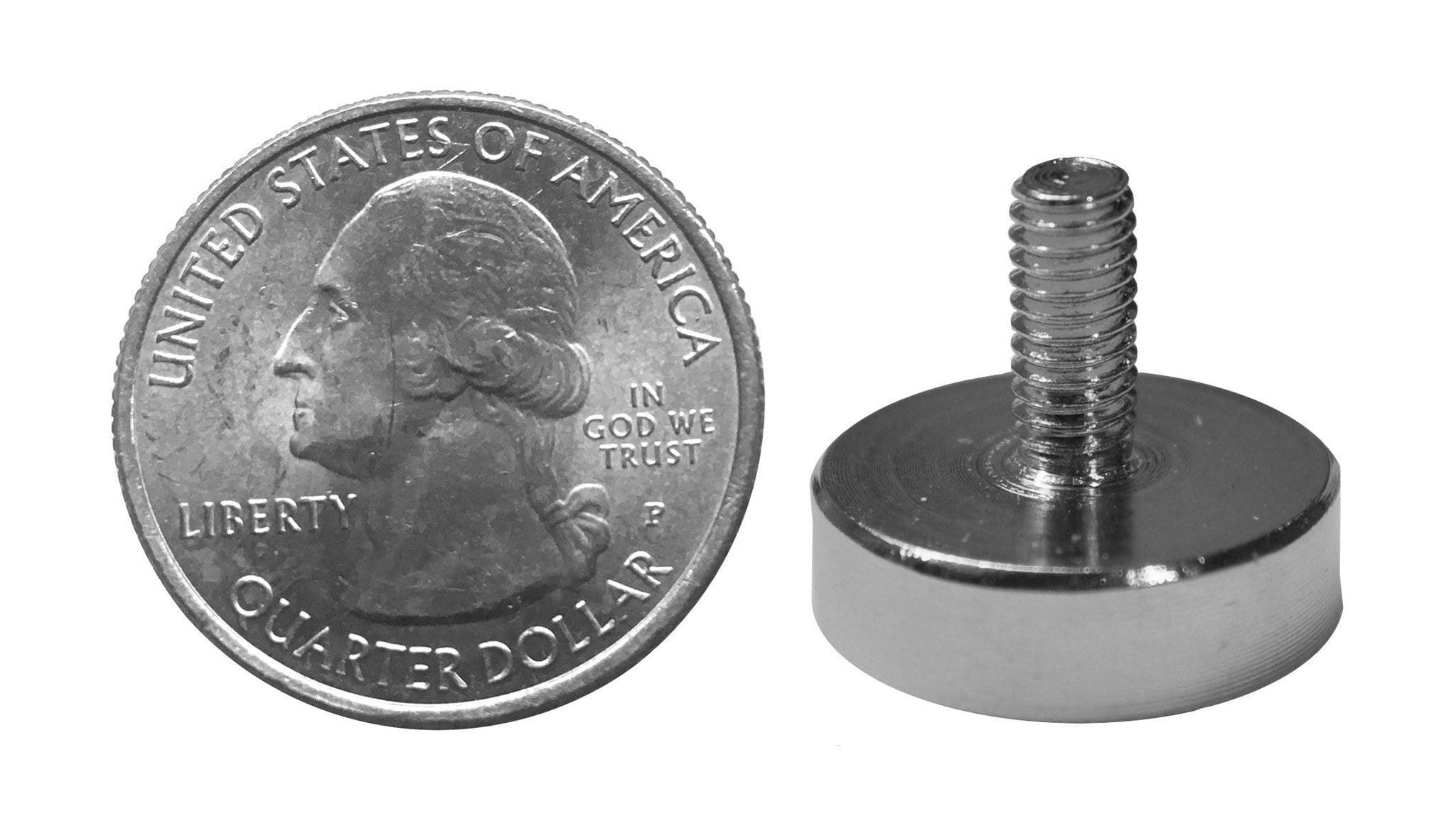

0.630" (16mm) diameter x 0.197" (5mm) cap thickness x 0.512" (13mm) overall height with an M4 outside screw shaft cap magnet / pot magnet. All dimensions +/- 0.5 mm tolerance.

Magnet:  Neodymium Disc Magnet, Grade N35, Nickel plated.

Minimum Order Quantity (MOQ) = 5 for this part.

Cap Magnets are also known as Pot Magnets.  These pot magnets provide excellent holding force in a small footprint.  Our inventory contains many sizes and options, but if you need a different size and holding force from a pot magnet, contact us, or use our online custom magnet quote form.


Regular price $0.62
Diameter0.630" (16mm)
Height0.512" (13mm)
Max Working Temp80°C
Pull Force12
Thickness0.197" (5mm) cap
Direction of Magnetism Through thickness

In Stock: 219
