CAP_C10

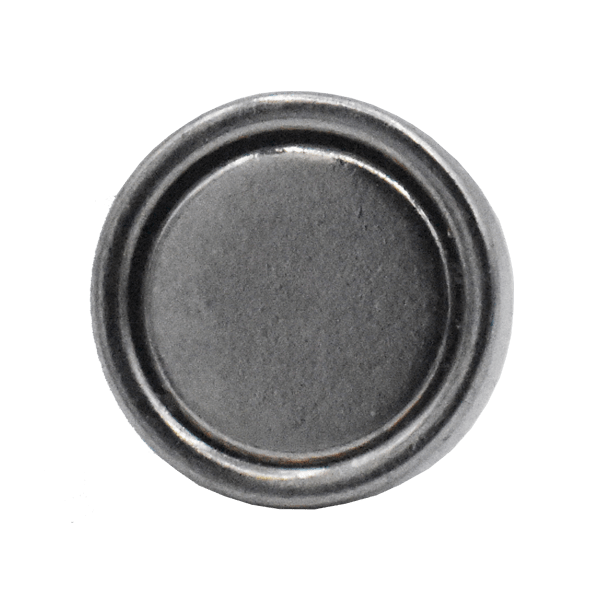

0.394" (10mm) diameter x 0.197" (5mm) cap thickness x 0.472" (12mm) overall height with an M3 outside screw shaft cap magnet / pot magnet. All dimensions +/- 0.5 mm tolerance.

Magnet:  Neodymium Disc Magnet, Grade N35, Nickel plated.

Minimum Order Quantity (MOQ) = 5 for this part.

Cap Magnets are also known as Pot Magnets.  These pot magnets provide excellent holding force in a small footprint.  Our inventory contains many sizes and options, but if you need a different size and holding force from a pot magnet, contact us, or use our online custom magnet quote form.

CAP_C10

Regular price $0.39
Diameter0.394" (10mm)
Direction of MagnetismThrough thickness
Height0.472" (12mm)
Max Working Temp80°C
MOQ5
Plating/CoatingNickel
Pull Force4.5
StrengthN35
Thickness0.197" (5mm) cap
