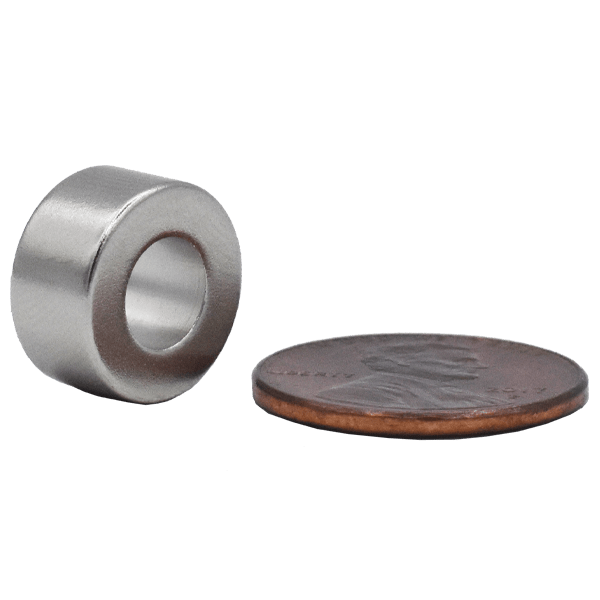

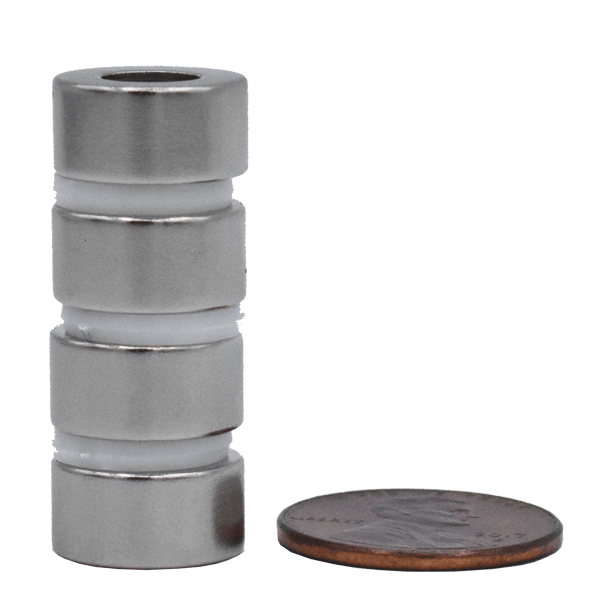

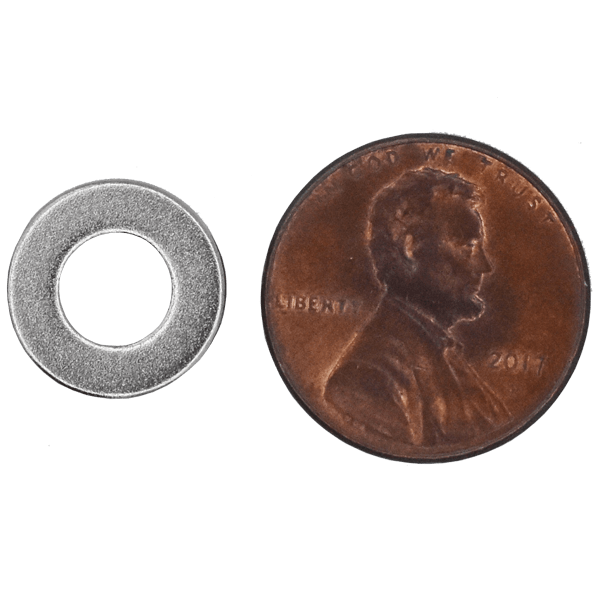

0.500" (12.70mm) OD x 0.250" (6.35mm) ID x 0.250" (6.35mm) thick, N50 Rare Earth Neodymium Ring Magnet, magnetized through thickness. Nickel Plated.
Minimum Order Quantity (MOQ) = 5 for this part.
Neodymium Ring Magnets can be manufactured in any size, and can be magnetized through the thickness or across the diameter. We can also produce a multipole ring magnet, or a radial ring magnet. Need some assistance with your magnet requirement? Contact us, or use our online custom magnet quote form.
R1014Regular price $1.35
|Direction of Magnetism||Through thickness|
|Inside Diameter||0.250" (6.35mm)|
|Max Working Temp||60°C|
|Outside Diameter||0.500" (12.70mm)|
|Pull Force||10.39 lb|
